properties between the tube and the adhesive, which is un-
usual. Both are whitish with gray horizontal features—and
the dividing line between the tube and adhesive cannot be
discerned. The black line at the bottom of the image is the
surface of the metal rod, but the interface between the ad-
hesive and plastic is hard to distinguish.
This test was looking for air bubbles that could reduce
the strength of the adhesive in this critical application. The
red-black features toward the bottom of the Q-BAM image
are air bubbles. The interface between the adhesive and the
plastic, although acoustically invisible, probably lies just
above the bubbles.
An acoustic cross-sectional image generally does not
display the texture or color of the materials as they would
appear optically, but it has advantages (in addition to its
nondestructive properties) over optical imaging. The very
strong reflection of gap-type features is unchanged even if
the gap is as thin as 0.01 µm. In physical cross-sections,
such thin gaps may fill in with polishing material and be-
come optically invisible.
Acoustic sectioning also permits meaningful analysis
of internal features, which can then be used as a guide for
subsequent physical sectioning. Instead of guessing the
best location for sectioning, the acoustic (and planar) im-
ages show the precise location of internal features. If de-
sired, a sequence of acoustic sections can be made along
parallel surface lines to produce a slide show of internal
features, including defects, from one end of the sample to
the other.
For more information: Tom Adams is a consultant for
Sonoscan Inc., 2149 E. Pratt Blvd., Elk Grove Village, IL 60007,
847.437.6400, , .
ADVANCED MATERIALS & PROCESSES • OCTOBER 2014 27
Planar view
Cross-section

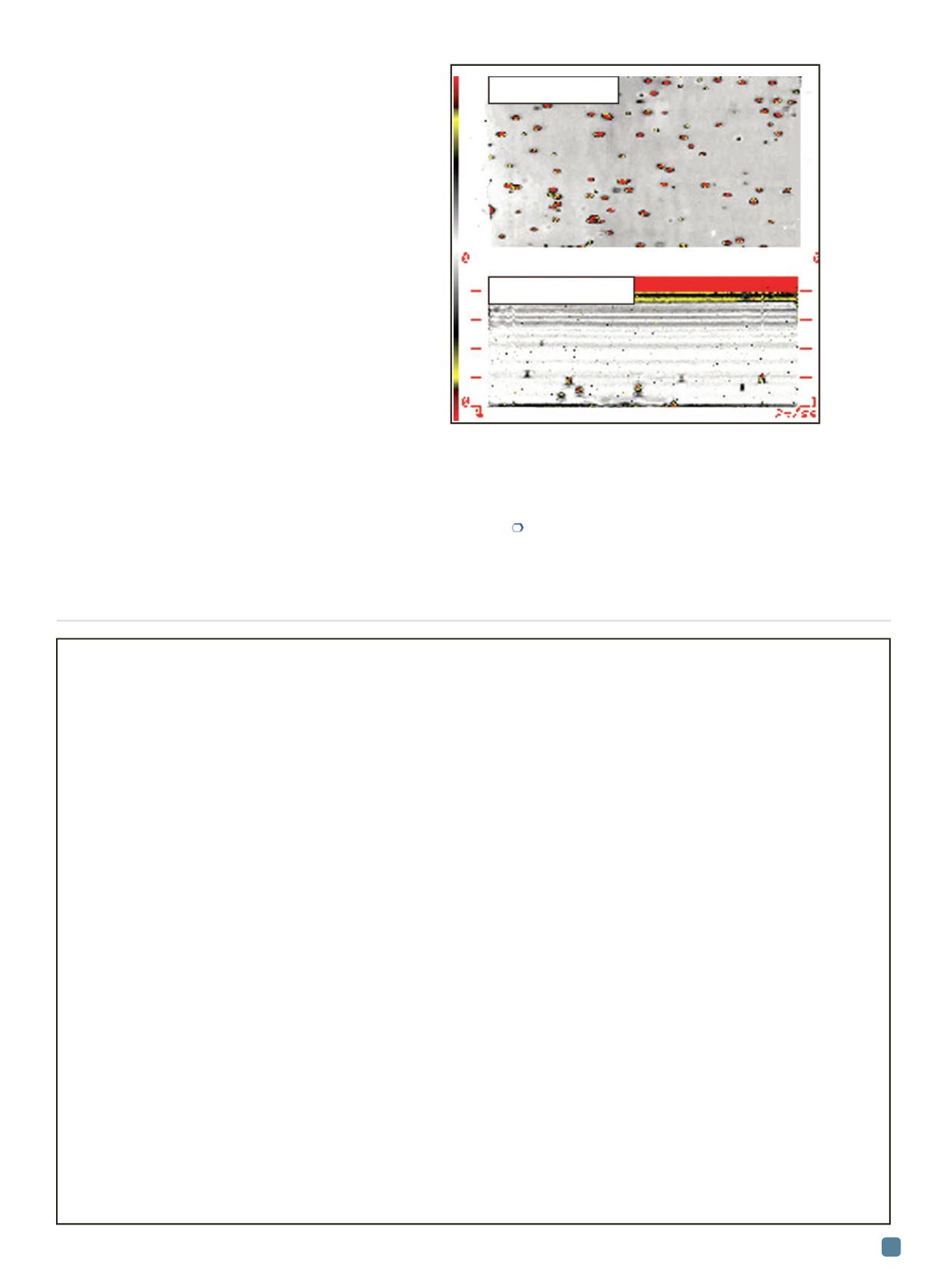

Fig. 5 — Planar view (top) shows x-y locations of air bubbles in
